A Series

Name: A Series Single Plate Laser Cutting Machine
Brand: Bodor
SKU: A-SERIES-LASER
Availability: InStock
Rating: 4.8 (20 reviews)

Single Plate Laser Cutting Machine

The Bodor A-Series is a smart, cost-effective fiber laser cutting solution, designed for businesses that want to step into high-quality laser cutting with confidence. Compact, efficient, and easy to operate, the A-Series combines excellent cutting performance with exceptional value.

Perfect for:
- Small to medium-sized workshops
- Job shops and metal fabricators
- Businesses upgrading from plasma, waterjet, or mechanical cutting

With Bodor’s in-house developed laser source, cutting head, and software, the A-Series offers smooth system integration and dependable performance. It’s the ideal choice for manufacturers who need professional laser cutting power in an affordable, space-saving package.

Get a Quote

Cost Efficient

Lowers the initial investment and operation costs for laser cutting, making it an economical choice for businesses.

High Speed Cutting

1.5G of acceleration and lightweight and strong structure design substantially ensure efficiency and value creation per second.

Easy to Operate

Intuitive controls and smart features simplify laser cutting operation and maintenance, making it accessible and efficient for all skill levels.

Technical Data

Technical Specifications	A3	A4	A4 PLUS	A6	A6 PLUS	A8	A12	A14
Working Area (mm)	3048x1524	4000x1524	4000x2000	6100x1524	6100x2500	8050x2500	12200x2500	14000x3100
Laser Power	1.5/3/6kW	1.5/3/6kW	1.5/3/6kW	1.5/3/6/12kW	3/6/12kW	6/12/24kW	6/12/24/30/60kW	12/24/30/60kW
Positioning Accuracy (mm/m)	+-0.05	+-0.05	+-0.05	+-0.05	+-0.05	+-0.05	+-0.05	+-0.03
Re-positioning Accuracy (mm)	+-0.03	+-0.03	+-0.03	+-0.03	+-0.03	+-0.03	+-0.03	+-0.02
Max Acceleration	1.5G	1.5G	1.5G	1.5G	1.5G	1.5G	1.5G	1.5G
Max Linkage Speed (m/min)	100	100	100	100	100	100	100	100

Machine Features

Get a Quote

Diverse Power & Size Options

The A series caters to different business needs and project scales, offering power options from 1.5kW to 60kW and size variations ranging from 3048mm x 1524mm to 14000mm x 3100mm.

stronger, more rigid machine construction

Enhanced Structural Strength

The third generation mortise and tenon welding bed frame adds 30% more rigidity and 25% more strength compared to previous generations - resulting in a more stable and effective work space.

Active Obstacle Avoidance

BodorGenius uses sensors and algorithms to detect potential obstacles like tilting parts and automatically avoids a potential collision. Achieve greater detail without compromising your components.

Intelligent remnant Layout

With uploaded pictures, the machine can automatically finish positioning and nesting, achieving maximum material utilizaition.

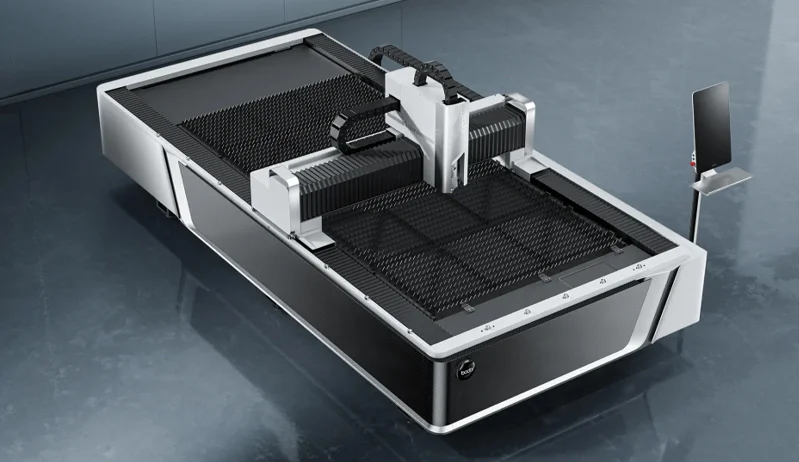

Easy Maintenance

With the A Series laser cutter, maintenance is easy. Everything is within reach. Instant nozzle change during sheet replacement and convenient storage compartment
